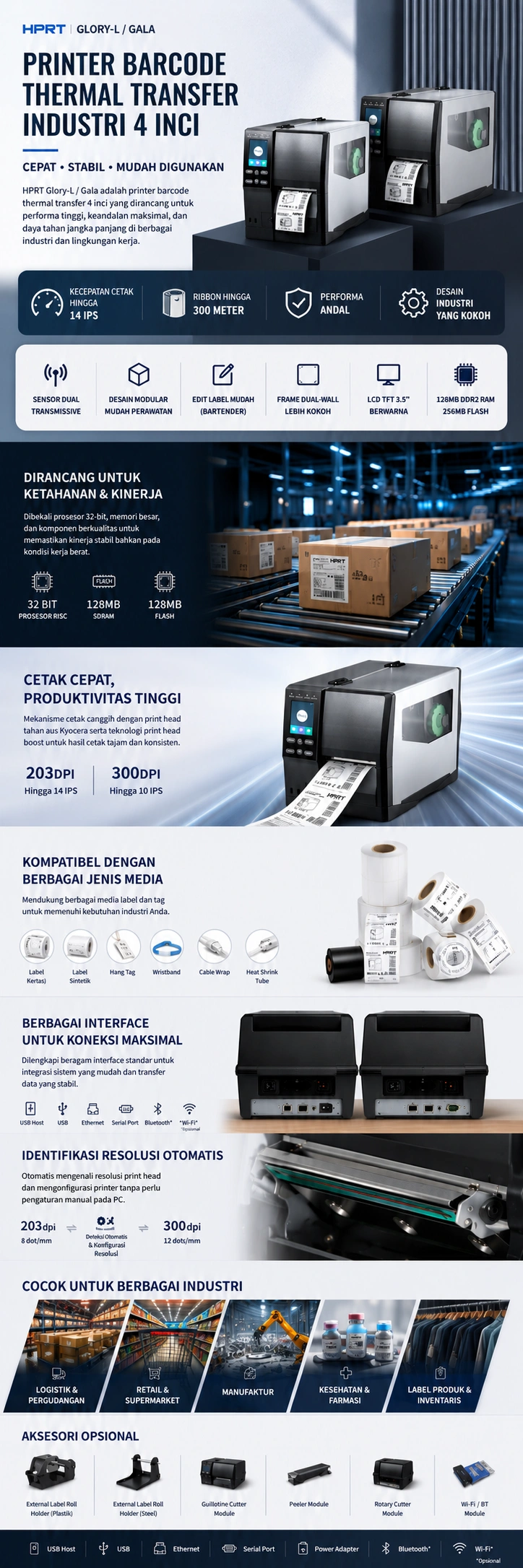

HPRT GALA Glory — Industrial Barcode Printer

Spesifikasi Teknis

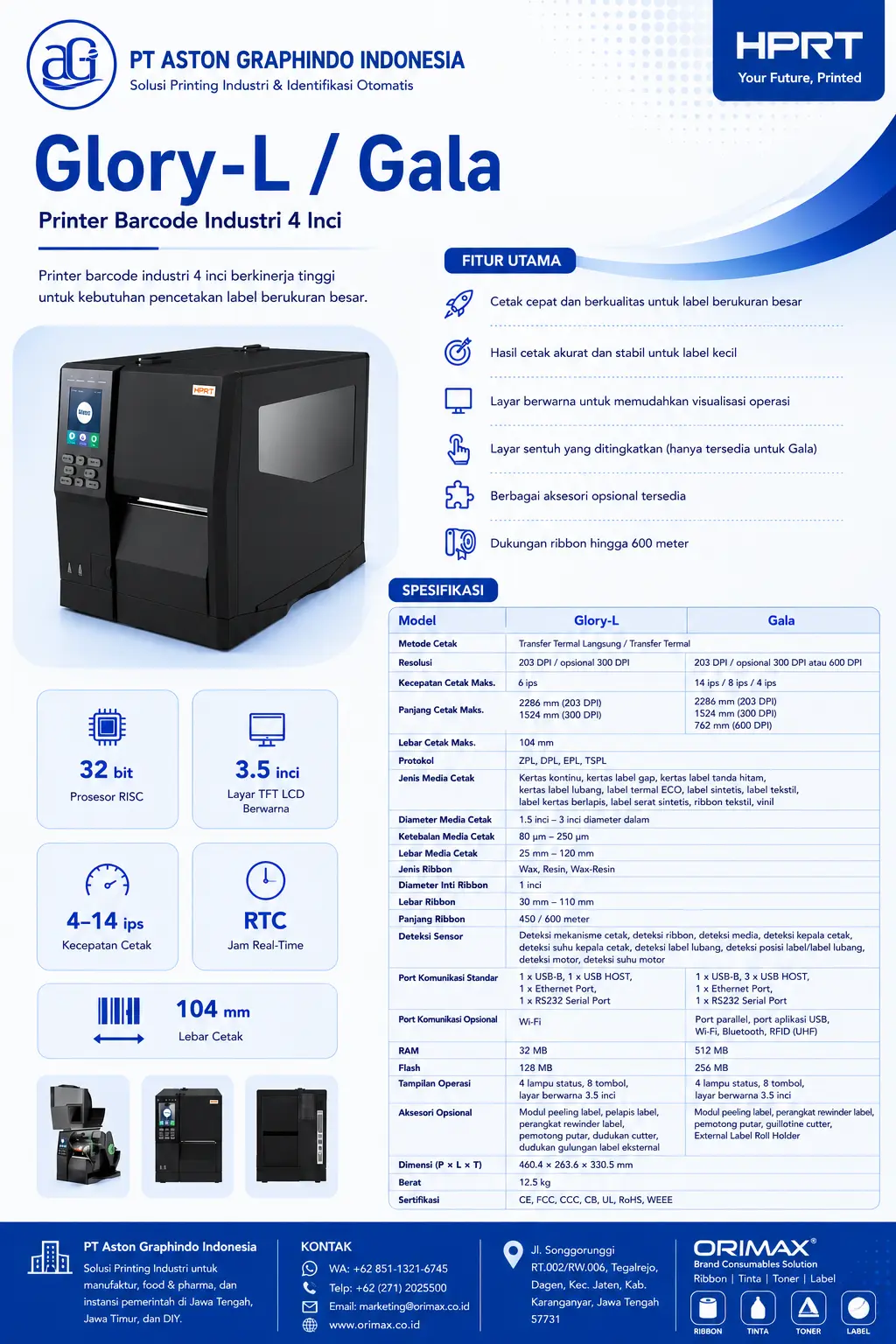

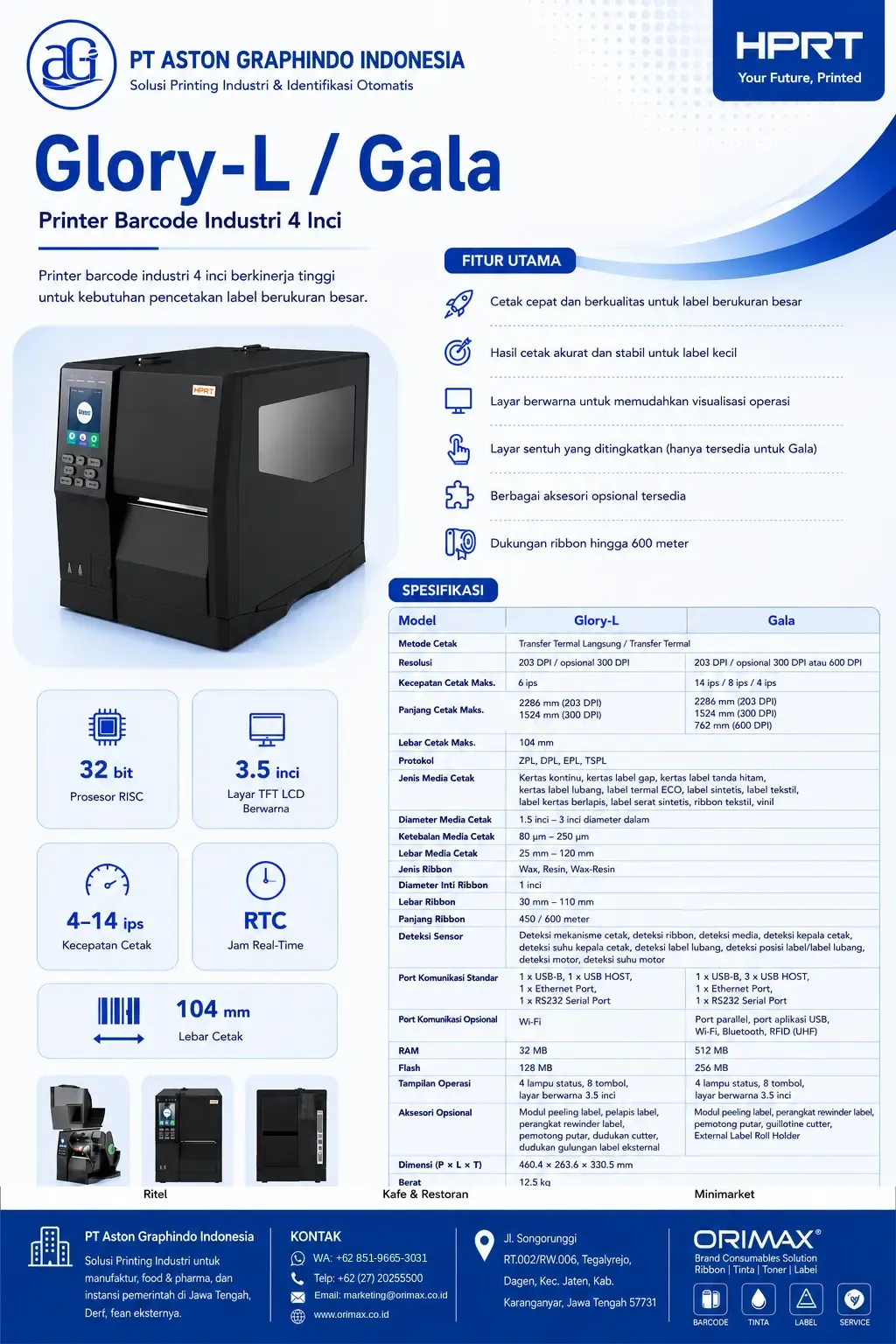

Perbandingan Glory-L vs Gala — biru = keunggulan Gala

Spesifikasi	Glory-L	Gala
Metode Cetak	Direct Thermal / Transfer Thermal	Direct Thermal / Transfer Thermal
Resolusi / Kecepatan	203 dpi / 6 ips	203 dpi / 14 ips
Resolusi Opsional	300 dpi / 6 ips	300 dpi / 8 ips atau 600 dpi / 4 ips
Panjang Cetak Maks.	2286 mm (203 dpi) / 1524 mm (300 dpi)	2286 mm (203) / 1524 mm (300) / 762 mm (600 dpi)
Lebar Cetak Maks.	104 mm	104 mm
Protokol	ZPL, TSPL	ZPL, DPL, EPL, TSPL
Tipe Media	Continuous, Gap, Black mark, Punched hole, ECO thermal, Coated semi-gloss, Synthetic fiber, Textile ribbon, Vinyl
Diameter Media	1,5" / 3" inner diameter; maks. 10" outer diameter
Ketebalan Media	80 μm – 250 μm
Lebar Media	25 mm – 120 mm
Tipe Ribbon	Wax, Resin, Wax/Resin
Lebar Ribbon	30 mm – 110 mm; Core 1"
Panjang Ribbon	450 / 600 meter
Sensor	Print mechanism off, Ribbon off, Media off, Over-temperature, Seam/Punched/Black label positioning, Motor over-temp
RAM	32 MB	512 MB
Flash	128 MB	256 MB
Port Standar	1× USB-B, 1× USB Host, Ethernet, RS232	1× USB-B, 3× USB Host, Ethernet, RS232
Port Opsional	WiFi, Bluetooth	Parallel/Labeller Port, WiFi, BT, UHF RFID
Layar	3.5 inci color screen	3.5 inci upgraded touch screen
Kontrol	4 lampu status, 8 tombol	4 lampu status, 6 tombol
Aksesori Opsional	Label peeling module, Label liner rewinder, Cutting module, External label roll holder
Dimensi (P×L×T)	460,4 × 263,6 × 330,5 mm
Bobot	12,5 kg
Sertifikasi	CE, FCC, CCC, CB, UL, RoHS, WEEE
